Khoom Description
|
Khoom npe |
T-Zoo li Silicone Plug |
|
Yam khoom |
T-zoo li tus silicone ntsaws nrog flange sab saum toj cap, cylindrical insertion lub cev, puag ncig |
|
Qhov Loj |

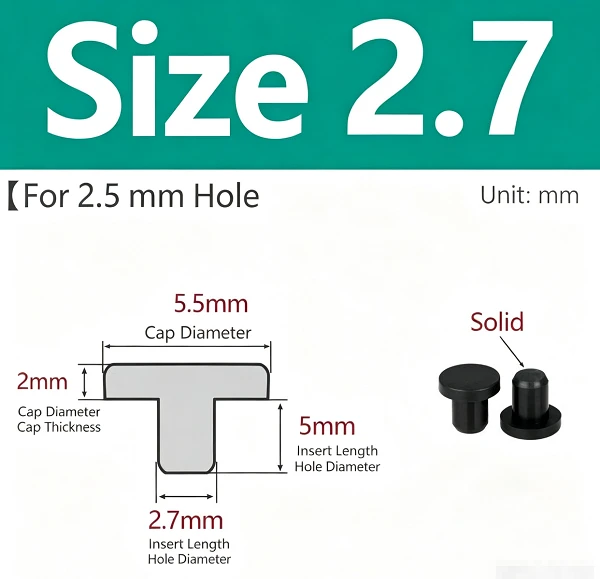

Fits qhov diameters ntawm 2.5mm txog 200mm; 121 qhov sib txawv me me muaj |
|
Kev siv thawj zaug |
Lub qhov sealing, plua plav pov thawj, tiv thaiv kev sib kis, kev sib khi ib ntus; Thaum tshav kub kub twj tso kua mis tooj liab yeeb nkab chaw nres nkoj tiv thaiv |
|
Ntsiab nta |
Dustproof sealing; yooj yim dej / cuam tshuam tsis kam; cuab tam-free installation/removal; flange tiv thaiv plug los ntawm poob rau hauv lub qhov |
|
Khoom siv |
Silicone (cov ntaub ntawv mos elastic) |
|
Daim ntawv thov Scenario |
Kev tiv thaiv ib ntus yeeb nkab chaw nres nkoj, daim ntawv hlau qhov sib khi, cov khoom siv lub qhov npog, cov twj tso kua mis kub kub tiv thaiv kev tiv thaiv ntawm kev ua haujlwm brazing |
|
Txoj Kev Txhim Kho |
Phau ntawv xovxwm-fit insertion; tshem tawm los ntawm rub tawm ncaj qha; tsis muaj cuab yeej xav tau |
|
Core Zoo |
Kev pab dav dav; elastic haum rau lub qhov taub; cuab yeej- ua haujlwm dawb; flange tiv thaiv kev poob / paug; plua plav sealing; txaus Tshuag rau kev xa khoom sai |
|
Cov ntawv pov thawj |
ROHS, REACH, ISO9001 |
Khoom zoo
Khoom zoo
1. Kev Pabcuam Loj
121 qhov sib txawv me me uas npog lub qhov taub ntawm 2.5mm txog 200mm, suav nrog cov qauv thiab luv luv -length versions. Cov qauv feem ntau yog muaj los ntawm Tshuag rau kev xa khoom sai.
2. T-Flange Anti-Poob Design
Cov qauv flange saum toj kawg nkaus ua kom lub ntsaws tsis tuaj yeem poob rau hauv cov yeeb nkab tooj liab lossis kab noj hniav, tiv thaiv cov khoom txawv teb chaws sib kis - tseem ceeb rau cov txheej txheem kub twj tso kua mis .
3. Silicone Elastic Sealing
Mos silicone muab elastic compression kom haum rau lub qhov phab ntsa, xa cov plua plav pov thawj, tiv thaiv kev sib kis, thiab yooj yim ya raws los tiv thaiv cov kav dej huv.
4. Cov cuab yeej -Kev teeb tsa dawb
Phau ntawv xovxwm-in insertion thiab ncaj rub- tawm tshem tawm- hloov mus rau ntau- chaw nres tsheb ntau lawm workflows yam tsis muaj kev puas tsuaj rau cov yeeb nkab tooj liab.
5. Kev siv ntau yam
Haum rau cov twj tso kua mis tooj liab yeeb nkab tiv thaiv, cov ntawv hlau qhib sealing, cov khoom siv los tiv thaiv- cov ntaub qhwv, qhov npog, thiab lwm yam.
Cov lus qhia installation
Kev txheeb xyuas qhov loj: Paub meej tias cov yeeb nkab tooj liab lossis lub qhov taub sab hauv thiab xaiv qhov sib thooj T-Shaped Silicone Plug qauv .
Nias -Fit Installation: Teem nrog cov yeeb nkab qhib thiab nias lub ntsaws ntsaws rau hauv lub qhov kom txog thaum lub flange zaum yaug tawm tsam cov yeeb nkab kawg lub ntsej muag.
Kev tshem tawm: Thaum brazing lossis sib dhos yuav tsum tau, tuav lub flange sab saum toj thiab rub lub ntsaws ncaj qha.
Daim ntawv thov Scenarios & Ceev faj
Daim ntawv thov Scenario
- HVAC & Kev Lag Luam Thaum Tshav Kub Kub: Cov yeeb nkab tooj liab tiv thaiv thaum lub sij hawm tsim khoom, sib khi ob qhov kawg ua ntej brazing kom tsis txhob muaj plua plav, hlau chips, thiab cov kab mob nkag mus rau hauv cov kav dej; sealing ib ntus thaum lub sijhawm ntau - chaw nres tsheb hloov .
- Sheet Hlau & Enclosures: Npog thiab plua plav pov thawj rau ua ntej -drilled qhov hauv cov ntawv hlau thiab cov khoom vaj huam sib luag .
- Furniture & Hardware: Cov khoom siv ko taw pads, qhov npog rau kev zoo nkauj.
- General Pipe Processing: Kev tiv thaiv ib ntus plua plav tiv thaiv rau ntau cov yeeb nkab kawg thaum ua tiav.
Cov kev ceev faj
- Cov khoom no yog tsim los rau kev tiv thaiv ib ntus nkaus xwb, tsis yog rau lub siab sealing. Nws tsis tuaj yeem tiv taus siab - siab roj lossis kua- rau kev tiv thaiv plua plav thiab kev sib kis nkaus xwb.
- Kev xaiv qhov loj me: Txheeb xyuas qhov tseeb qhov sab hauv kab ua ntej xaj. Qhov loj me me tsis raug yuav ua rau lub ntsaws poob los yog tsis tuaj yeem nruab.
- Rau cua sov twj tso kua mis brazing: Tag nrho cov plugs yuav tsum tau muab tshem tawm tag nrho ua ntej brazing. Silicone carbonizes ntawm qhov kub thiab txias, tawm hauv cov residues uas paug cov kav dej tooj liab.
- Standard vs. luv versions: Standard ntev yog pom zoo rau sealing zoo tshaj plaws. Siv cov ntawv luv luv tsuas yog qhov chaw txwv tsis pub- nws tau txo qhov kev sib khi ua haujlwm .
- Kev Ntsuas: Thov cov qauv rau kev kuaj xyuas qhov tseeb kom paub tseeb tias haum thiab sealing zoo ua ntej kev txiav txim ntau.
Kev sib piv
|
Kev sib piv |
T-Zoo li Silicone Plug |
Snap-Fit Plug |
|
Txoj Cai Fastening |
Elastic cuam tshuam haum-silicone deforms kom haum rau lub qhov phab ntsa |
Snap-lock barbs tuav lub qhov phab ntsa rau fixation |
|
Installation / Tshem tawm |
Yooj yim- nias ntawm tes, rub tawm ncaj qha |
Yooj yim installation, tshem tawm nyuaj; barbs tuaj yeem tawg tawm cov khib nyiab |
|
Pipe Contamination Risk |
T-flange tiv thaiv kev poob; tsawg kawg nkaus khib nyiab |
Cov barbs tawg tuaj yeem tawm hauv cov kav dej tooj liab |
|
Qhov Loj |
2.5-200mm, dav dav |
3-60mm,Feem ntau me me mus rau nruab nrab qhov; txwv loj - loj xaiv |
|
Qhov zoo tshaj plaws siv Case |
Kev tiv thaiv ib ntus thaum lub sijhawm tsim khoom, nquag tshem tawm / nruab |
Ntev - lub sij hawm ruaj sealing; tsis pom zoo rau piping yuav tsum tau welding tom ntej |
Tuam txhab Profile
Langfang Ruidi Tshiab Khoom Siv Technology Co., LTD., tau tsim nyob rau hauv 1987. Tam sim no nws tsuas yog ua haujlwm rau kev lag luam cua txias tub yees, kev lag luam tsheb, cov kav dej hauv kev lag luam, kev lag luam tshuab, thiab lwm yam.Peb tau tsim lub sijhawm ntev thiab ruaj khov kev lag luam kev sib raug zoo nrog ntau yam zoo- paub txog kev lag luam.
Dab tsi ua rau peb txawv
R&D Uas Paub Cov Qauv -Peb pab neeg ua haujlwm engineering suav nrog cov kws tshaj lij uas tau koom tes los tsim cov qauv kev lag luam roj hmab hauv Suav teb.
Kev Tswj Xyuas Zoo ntawm Txhua Qib -Hauv -cov chaw kuaj hauv tsev saib xyuas los ntawm kev tshuaj xyuas cov khoom nkag mus rau cov khoom pov thawj tiav, kom ntseeg tau tias muaj kev sib luag ntawm kev tsim khoom.
Kev paub thoob ntiaj teb -Exported mus rau ntau tshaj 15 lub teb chaws nrog rau US, Nyiv, Lub teb chaws Yelemees, Brazil, thiab lub UAE, muab peb kev nkag siab rau ntau yam kev specifications thiab cov ntaub ntawv yuav tsum tau.
vim li cas thiaj xaiv peb cov khoom?
Qhov Loj Loj & Npaj Tshuag- 121 qhov sib txawv me me npog 2.5-200mm lub qhov taub, nrog rau cov qauv feem ntau muaj los ntawm Tshuag rau kev xa khoom sai.
T-Flange Anti- Poob Tsim- Tiv thaiv lub ntsaws los ntawm kev poob rau hauv cov kav dej, tshem tawm cov kev pheej hmoo kis kab mob - tseem ceeb rau cov txheej txheem kub twj tso kua mis brazing.
Tool-Free & Ntau yam- Yooj yim phau ntawv xovxwm- haum rau kev teeb tsa thiab tshem tawm; haum rau tooj liab yeeb nkab sealing, daim ntawv hlau qhov npog, thiab ntau yam kev tiv thaiv ib ntus xav tau.
Tianjin Ruidi International Trade Co., Ltd
Langfang Ruidi Tshiab Material Technology Co., Ltd
Peb qhov chaw nyob
3001 Maoye Building, Haihe East Road, Hebei District, Tianjin 300140 PRChina
Xov tooj
+86 189 0205 0338
E -mail
topsales@rubberproduct.net
Inner Pursuit. Altruism Green · Resilience
FAQ
Q1: Puas yog T-Zoo li Silicone Plug nyob hauv cov yeeb nkab tooj liab thaum lub sij hawm brazing?
Q2: Vim li cas T-Phos Silicone Plug nyiam dua snap- haum plugs rau cov kav dej kub twj tso kua mis?
Q3: Qhov txawv ntawm qhov luv luv thiab tus qauv version yog dab tsi?
Q4: Koj puas tuaj yeem muab REACH lossis lwm daim ntawv tshaj tawm kev ua raws cai?
