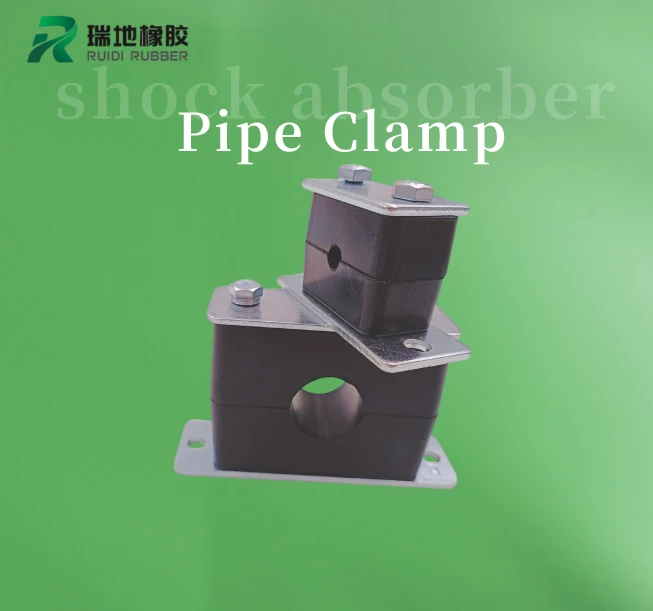

Khoom Description
|
Khoom npe |
Yeeb Clamp |
| Hom | RUIDI |
| Siv tau Pipe Diameter | Copper Tube |
| Sab hauv | 21.2mm (≈0.835 nti) |
| Cov khoom tseem ceeb | Cov khoom tseem ceeb |
| Xaiv cov khoom siv hlau | Galvanized Steel + Roj Hmab / 304 Stainless Hlau + EPDM Roj Hmab |
| Cov khoom sib xyaw | Clamp Lub Cev, Mounting Base Phaj, Hex Socket Bolt, Gasket |
|
Khoom siv |
EPDM |
| Qhov kub thiab txias | -40℃~ 120 degree |

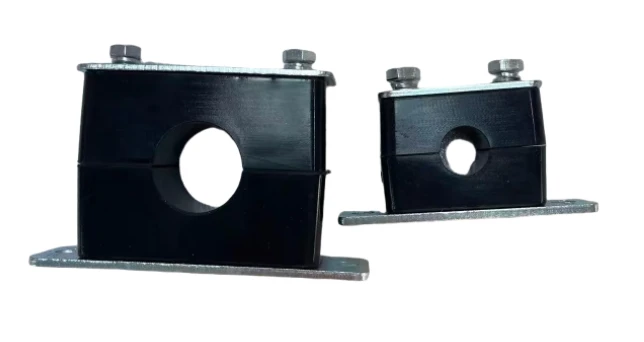

| Tag Nrho Cov Loj Loj | GJ7.94, GJ9.52, GJ12.7, GJ15.88, GJ19.05, GJ22.2, GJ25.4, GJ28.6, GJ32, GJ34.9, GJ42, Custom Sizes & Materials Available |
Copper Tube Size Conversion Table
| Clamp Qauv | Copper Tube OD (mm) | Imperial feem (Inch) |
| qw 7.94 | 7.94 | 5/16" |
| qw 9.52 | 9.52 | 3/8" |
| GJ 12.7 | 12.7 | 1/2" |
| GJ 15.88 | 15.88 | 5/8" |
| GJ 19.05 | 19.05 | 3/4" |
| GJ 22.2 | 22.2 | 7/8" |
| GJ 25.4 | 25.4 | 1" |
| GJ 28.6 | 28.6 | 1 1/8" |
| GJ 32 | 32 | 1 1/4" |
| lwj 34.9 | 34.9 | 1 3/8" |
| GJ42 | 42 | 1 5/8" |
Khoom Advantage

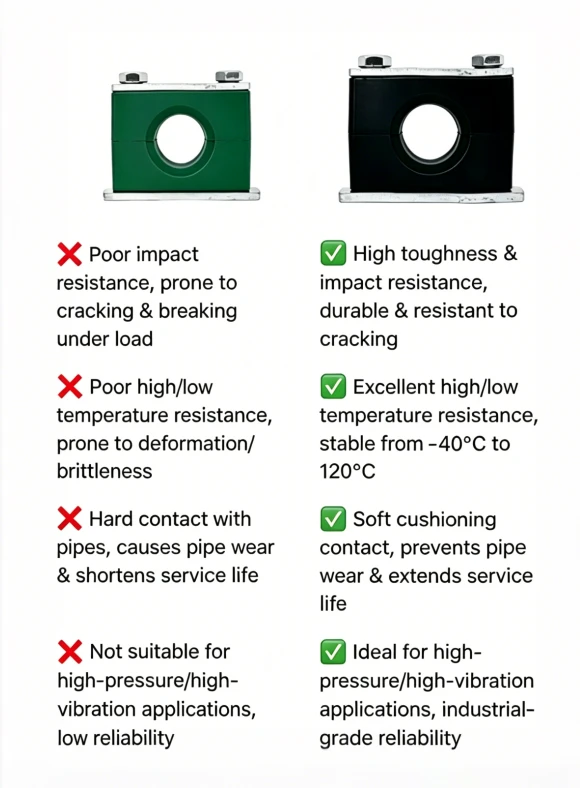

Khoom zoo
Kev ua tau zoo ntawm EPDM roj hmab Lub puab EPDM hauv ob sab phlu resists siab & qis kub, laus thiab ozone. Nws yuav tsis tawv, tawg los yog deform nyob rau hauv ntev - lub sij hawm ua hauj lwm tej yam kev mob, zoo heev ncua kev pab cuam lub neej.

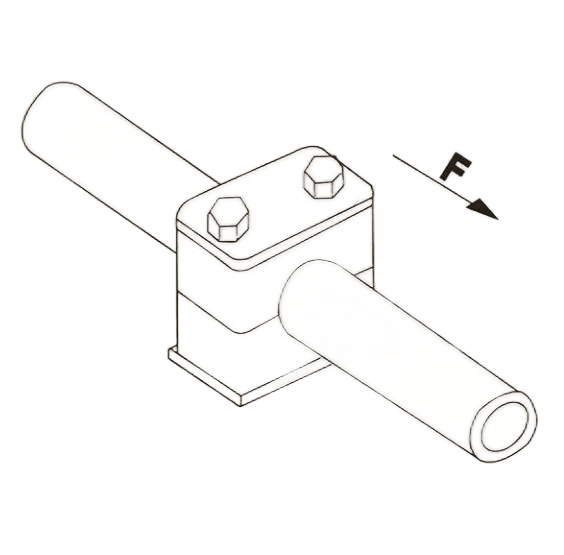

Shock absorption & pipeline tiv thaiv kom tsis txhob muaj cov yeeb nkab tooj liab puas Cov roj hmab hauv ob sab phlu siab absorbs kev co thiab tshem tawm cov yeeb nkab ua haujlwm suab nrov. Nws cais cov hlau bracket los ntawm kev sib txhuam ncaj qha nrog cov kav dej tooj liab, tiv thaiv cov yeeb nkab khawb, abrasion thiab nruab nrab to.
Split sai-nruab qauv rau kev tsim kho yooj yim Qhov kev sib cais qhib tsim tso cai rau kev teeb tsa, tu thiab hloov pauv yam tsis muaj kev cuam tshuam tag nrho cov kav dej, txuag lub sijhawm tsim kho thiab nqi zog.
Galvanized hlau puag rau ruaj khov installation & corrosion kuj Lub galvanized hlau bracket yog xeb -pov thawj thiab corrosion-resistant. Nws tuaj yeem ruaj khov rau ntawm cov khoom siv thav duab lossis phab ntsa kom tiv thaiv cov xaim xaim xaim thiab xoob.
Ua kom tiav cov kev qhia tshwj xeeb nrog kev sib tw dav 11 tus qauv qauv npog tooj liab kav los ntawm 5/16 "mus rau 1-5/8", tau tshaj cov hydraulic, tub yees thiab thermal pipeline systems. Kev txiav txim ntau thiab ntau yam muaj.
Cov lus qhia ua haujlwm

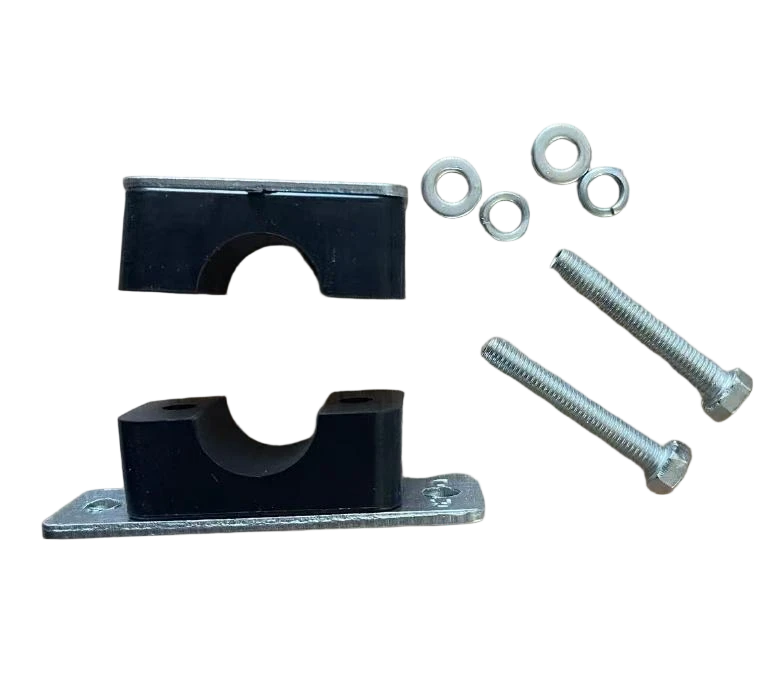

Cov txheej txheem tag nrho suav nrog sab sauv thiab sab qis damping clamp halves, galvanized hlau npog daim hlau, fastening bolts thiab hlau puag.
Txoj Kev 1: Welded Base Mounting (Feem ntau rau Industrial Hydraulic Pipelines)
Kev kos npe rau txoj haujlwm: Kos cov ntsiab lus kho rau cov kav dej ntawm cov khoom siv los yog cov qauv kev txhawb nqa steel.
Weld lub hauv paus ua ntej: Weld cov hlau puag phaj cais mus rau qhov chaw cim. Tsis txhob welded tom qab sib sau ua ke cov yeeb nkab clamp, raws li qhov kub siab yuav ua rau cov yas damping clamp lub cev puas.
Txhim kho qhov qis clamp ib nrab: Ntxig qis ib nrab ntawm cov yeeb nkab clamp rau hauv lub qhov ntawm lub hauv paus hlau.
Muab cov yeeb nkab: Nruab nrab ntawm hydraulic steel yeeb nkab lossis siab - siab hose nyob rau hauv lub puab kab noj hniav ntawm lub clamp.
Haum rau sab saum toj clamp ib nrab thiab npog phaj, xov ob lub bolts los ntawm lawv, thiab ceev cov bolts sib npaug hauv kab pheeb ces kaum. Xyuas kom cov yeeb nkab nyob twj ywm ncaj nrog nruab nrab clamping nruj (tsis txhob flattening cov yeeb nkab phab ntsa los yog xoob hloov).

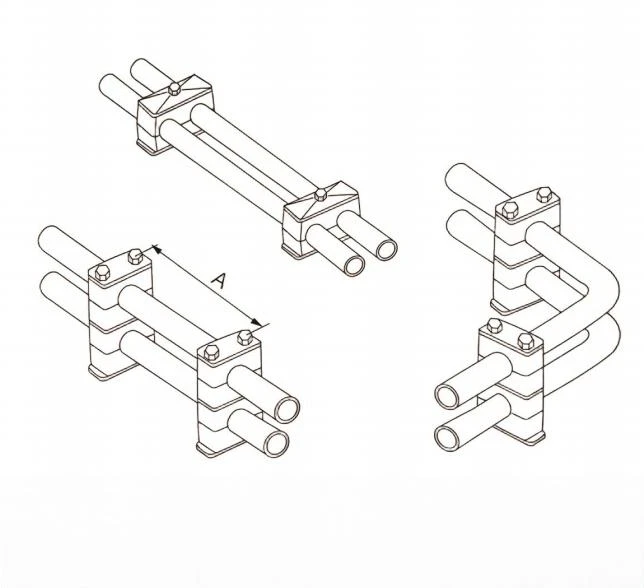

Txoj Kev 2: C-Rail Sliding Groove Assembly (Rau Densely Arranged Parallel Pipelines)
Ruaj ntseg C- hom kev tsheb ciav hlau mus rau cov khoom siv thav duab ntawm vuam lossis ntsia liaj qhov rooj fastening.
Xaub cov ntsia hlau ntsia hlau rau hauv qhov zawj thiab tig nws 90℃txhawm rau txhawm rau hauv qhov chaw, tom qab ntawd kaw cov yeeb nkab qis rau ntawm lub txiv ntoo.
Tso cov yeeb nkab, kaw lub clamp npog phaj thiab ceev cov bolts. Ntau lub raj xa dej tuaj yeem ntsia tau rau hauv cov txheej txheej txheej.
vim li cas ho xaiv peb?
vim li cas thiaj xaiv peb cov khoom
Superior Quality & Rigorous Quality Assurance
Peb tsom hnyav rau lub neej ua haujlwm ntev rau tag nrho cov yeeb nkab clamps, nrhiav cov roj hmab hwm thiab cov khoom siv hlau. Txhua yam khoom mus dhau los ntawm kev sim ua tiav npog cov khoom xa tuaj txhua txoj hauv kev kom tiav cov khoom tiav kev tshuaj xyuas zaum kawg. Ua raws li kev lag luam tshwj xeeb, peb cov yeeb nkab txhawb nqa kev ua haujlwm zoo ib yam, tsis tu ncua, txiav cov ntu ntu hloov pauv thiab txo koj qhov ntev - khiav cov nuj nqis ua haujlwm.
Customized Solutions & Dedicated Technical Assistance
Cov neeg sib tw feem ntau tsuas yog muab cov qauv ntau thiab tsawg, thaum peb txhawb nqa kev kho kom haum xeeb ntawm qhov ntev, cov qauv ntawm cov khoom siv raw thiab cov roj hmab tawv kom haum rau cov khoom siv tshwj xeeb thiab cov khoom siv. Peb pab neeg ua haujlwm paub txog kev ua haujlwm muab tus kheej ib qho - ntawm - ib qho kev taw qhia kev, tailoring optimization solutions for compressors, automotive piping and industrial mechanical systems.
Nyiaj txiag - Tus nqi phooj ywg & Kev Pabcuam Cov Neeg Siv Khoom
Raws li cov chaw tsim khoom ncaj qha, peb tshem tawm cov neeg xa khoom nruab nrab kom muab cov nqi txiav txim siab zoo. Kev txhawb nqa los ntawm kev ua haujlwm ntawm cov khoom siv hluav taws xob ua haujlwm tau yooj yim, peb tuav lub sijhawm ua haujlwm sai nrog rau kev ceeb toom tom qab- kev pab muag khoom. Txhua qhov teeb meem kev teeb tsa lossis kev ua haujlwm yuav raug daws kom zoo kom koj txoj haujlwm kev koom tes ua haujlwm yam tsis muaj kev ncua.
Tianjin Ruidi International Trade Co., Ltd
Langfang Ruidi Tshiab Material Technology Co., Ltd
📞 Tel: +86 189 2034 6230
📧 Email: administrator@rubberproduct.net
🌍Lub Vev Xaib: https://www.rubberproduct.net/
🗺️ Chaw nyob: 3001 Maoye Building, Haihe East Road, Hebei District, Tianjin 300140 PRChina
Inner Pursuit · Altruism Green · Resilience
FAQ
01.Dab tsi yog txoj kab uas hla ntawm cov yeeb nkab Clamp haum rau?
02.Dab tsi yog cov ntawv thov tseem ceeb ntawm Pipe Clamp?
03.Dab tsi yog cov khoom siv thiab kev ua haujlwm ntawm cov yeeb nkab clamp?
04.Vim li cas thiaj xaiv koj Cov Yeeb Nkab Clamp?
05.Koj puas muab cov qauv me me -batch?
